白色硅胶包覆螺旋钢丝增强波纹特氟龙管TCWSSW

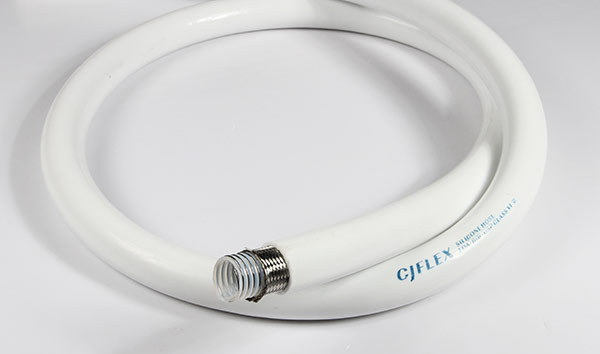

CJFLEX 白色硅胶包覆螺旋钢丝增强波纹特氟龙管

 TYPE TCWSSW


Construction: A helically convoluted PTFE (Polytetrafluorethylene) suction/pressure hose, with external vacuum wire with silicone vulcanized high tensile stainless steel braid. The hose has very good vacuum and kink resistance.
Temp. Range: -60°C and +200°C.
Applications: It should be specified for steam applications or when high vacuum hose applications are required. Generally excellent mechanical strength. Silicone vulcanized stainless steel braid ensures a high flexibility and easy cleanability. Making it ideal for Food, Bio, and Cosmetic industry.
Certification: FDA.
结构:内管为波纹状的PTFE软管,内置不锈钢螺旋钢丝加强,外覆不锈钢丝编织和白色硅胶层。
温度范围:-60℃至+200
标准与防静电内衬可供选择。
应用场合:特别适合用在输送蒸汽或者要求高负压的场合。这个管子具有非常优秀的机械强度。抗扭结,即使在高温时都有极好的耐高压和耐真空性能。硅胶保护层提供了更好的柔韧性和可清洁性,主要用于食品、生物及化妆品生产领域。

符合FDA认证。


编码 内径 最小外径 壁厚 弯曲半径 工作压力 爆破压力
in.  mm  mm  mm mm bar bar
TCWSSW010 3/8" 9.5 19.1 0.75 25 110 440
TCWSSW013 1/2" 12.7 22.1 0.75 35 100 400
TCWSSW016 5/8" 15.9 27.9 0.75 45 85 340
TCWSSW019 3/4" 19 31.4 0.90 50 80 320
TCWSSW025 1" 25.4 39.4 1.00 70 60 240
TCWSSW032 1-1/4" 32 51.1 1.00 85 45 180
TCWSSW038 1-1/2" 38 56.4 1.00 110 35 140
TCWSSW051 2" 50.8 69.9 1.10 140 25 100
