不锈钢丝编织防静电平滑特氟龙管 TSAS
CJFLEX 不锈钢丝编织防静电平滑特氟龙管
TYPE TSAS

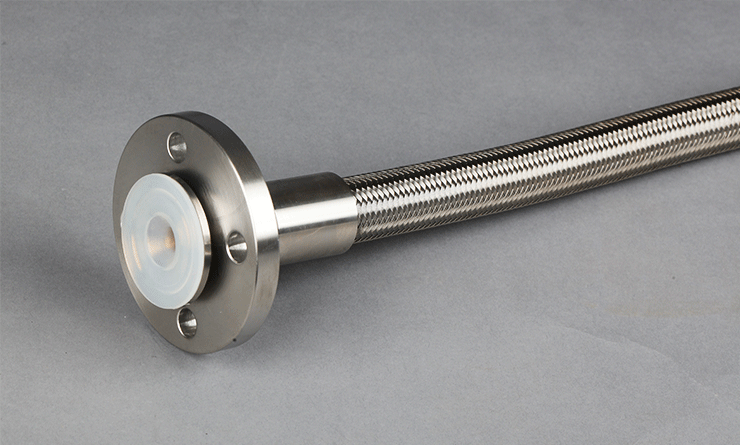

Construction: Type TSAS is manufactured from smooth anti-static PTFE tube with
stainless steel over braid.
Temp. Range: -70°C and 260°C.
Applications: For transporting
corrosive chemicals, hot air, hot oil, steam and so on where a closed bending
radius is not required. Not recommended for steam-cold water cycling.
Virgin and anti-static liners are available.
This hose has the advantage of zero friction, high pressure and a wide
temperature range and is suitable for CIP and SIP cleaning.
Certification: FDA
Applications: For transporting corrosive chemicals, hot air, hot oil, steam and so on where a closed bending radius is not required. Not recommended for steam-cold water cycling.
Virgin and anti-static liners are available.
This hose has the advantage of zero friction, high pressure and a wide temperature range and is suitable for CIP and SIP cleaning.
Certification: FDA
结构：内管为完全平滑黑色防静电PTFE软管，外覆不锈钢丝编织
温度范围：-70℃至+260℃
应用场合：输送强腐蚀性化学品，热空气，热油，蒸汽等。不宜用在蒸汽冷水循环。
可根据客户要求，定制成黑色抗静电内管
具有零摩擦、耐高压和耐温广的优势，可进行CIP和SIP清洗
符合FDA认证
| 编码 | 内径 | 外径 | 内管壁厚 | 弯曲半径 | 工作压力 | 爆破压力 | |
| in. | mm | mm | mm | mm | bar | bar | |
| TSAS003 | 1/8" | 3.2 | 6.5 | 1.00 | 60 | 250 | 750 |
| TSAS005 | 3/16" | 4.8 | 7.7 | 0.75 | 60 | 200 | 600 |
| TSAS006 | 1/4" | 6.4 | 9.3 | 0.65 | 75 | 185 | 555 |
| TSAS008 | 5/16" | 7.9 | 11.3 | 0.75 | 100 | 180 | 540 |
| TSAS010 | 3/8" | 9.5 | 13.1 | 0.75 | 125 | 170 | 510 |
| TSAS013 | 1/2" | 12.7 | 16.5 | 0.75 | 140 | 130 | 390 |
| TSAS016 | 5/8" | 15.9 | 19.5 | 0.90 | 160 | 100 | 300 |
| TSAS019 | 3/4" | 19 | 23 | 0.90 | 200 | 75 | 225 |
| TSAS022 | 7/8" | 22 | 26.5 | 1.00 | 300 | 65 | 195 |
| TSAS025 | 1" | 25.4 | 29.8 | 1.05 | 400 | 65 | 195 |
