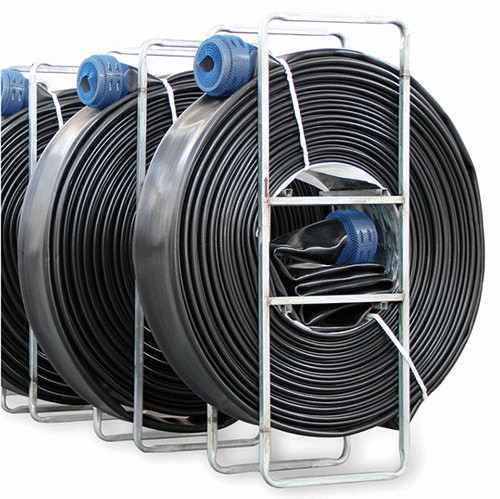

EPDM/TPU扁平水管 EUF
EPDM/TPU扁平水管 EUF
Application:
Mainly used in shale oil gas, coal and other
fields.
Features:
■ 3-ply manufacturing
process which ensures the high adhesion strength and top fatigue resistance
performance
■ Extreme chemical
resistance performance on the inner surface:
based on ISO/TR7620 -2005 contrast test among TPU, Synthetic Rubber and NP, the
performance of TPU and NP dropped dramatically, while Synthetic Rubber remain
unchanged.
■ Extreme abrasion
resistance property on the outer surface make the hose adapt to more working
condition.
■ Outstanding diameter
stability with high restored rate after be pressured thendepressured
■ Lager volume transfer
performance of liquid
■ Being easy to deploy
Construction:
Tube: EPDM rubber.
Reinforcements: Polyester fiber
Cover: TPU.
Standard Color: Black, other color on
request.
Standard length: 200m, other length on
request
Temperature range: –40°C～+70°C
应用范围：
主要用于页岩气油，煤矿等领域，可输送水，采出水（回水）。
产品特性：
● 高粘合力和强抗裂性
● 内衬具有优秀的耐化学性能，可输送水，采出水（回水）
● 外表面有极好的耐磨性，适用于多种工作环境
● 施压前后，软管的口径保持极好的稳定性。
● 更大的液体传输能力
● 具有易折叠和易展开的操作方便性
软管结构:
内管: EPDM橡胶。
增强层：聚酯纤维。
外管: TPU外层。
标准颜色：黑色，其它颜色可以定制。
标准长度：200米，或者根据客户要求定制
适用温度: -40 to 70℃
|
编码 |
内径 |
壁厚 |
外径 |
工作压力 |
爆破压力 |
重量 |
拉伸强度 |
|
|
inch |
mm |
mm |
mm |
bar |
bar |
kg/m |
kg |
|
|
EUF152 |
6" |
152+2.0 |
6.0 |
164+2.0 |
21 |
63 |
3.2 |
31000 |
|
EUF203 |
8" |
203.0+3.0 |
4.5 |
212+3.0 |
14 |
42 |
3.5 |
39000 |
|
EUF254 |
10" |
254.0+4.0 |
4.8 |
263.6+4.0 |
14 |
42 |
4.5 |
48300 |
|
EUF305 |
12" |
305.0+5.0 |
4.9 |
314.8+5.0 |
10 |
30 |
4.8 |
59600 |
|
*全部是理论拉伸强度。为了保证软管的最长使用寿命，建议拉伸力不要超过上述参数值的1/3。 |
||||||||
