CJFLEX 钢丝硅胶管 SQ

品牌：CJFLEX
口径范围：6.4-102mm
温度范围：-60°C 到+200°C
应用范围：食品、饮料、饮用水、化妆品、医药、制药、中间体、半成品、原料药等高洁净行业
认证标准：FDA, USP,BFR, USDA, ISO 10993


电子邮箱	QQ在线	打印此页	收藏此页

Description/产品详情

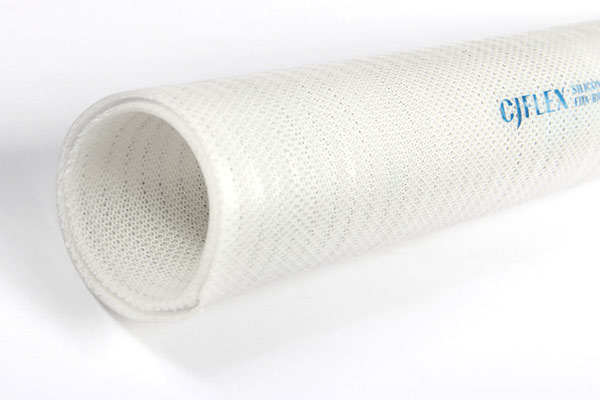

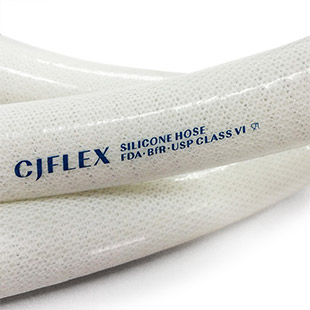

CJFLEX 铂金硫化钢丝硅胶管

TYPE SQ

Construction: Type SQ is manufactured from High purity platinum cured Silicone with single stainless steel helix and 4 layers of polyester reinforcement.
Temp. Range: -60°C and 200°C
Colour: Translucent (Coloured covers available)
Smooth inner and outer surface to resist material adhesion
Suitable for pressure and vacuum.
Suitable for CIP and SIP cleaning

Odourless, Tasteless, Non-Toxic

Note: If it is required to use high-temperature steam above 121 ℃ for a long time, it can be customized.

Certification: FDA, USP,BFR, USDA, ISO 10993
Length: Standard maximum length is 10 meters

** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

应用：食品、饮料、饮用水、化妆品、医药、制药、中间体、半成品、原料药等高洁净行业
结构：铂金硫化硅胶管，内置四层聚酯纤维布及不锈钢丝增强
温度范围：-60°C 到+200°C
颜色：标准为半透明，可定制其他颜色

内壁光滑，外表抗粘着性，可耐真空，可进行CIP及SIP清洗

注：如长期用于121℃以上的高温蒸汽输送，请明确告知，单独定制。

符合认证：FDA, USP,BFR, USDA, ISO 10993

长度：标准最长长度为10米

编码	内径		外径	弯曲半径	工作压力	爆破压力	真空度
编码	in.	mm	mm	mm	bar	bar	bar
SQ006	1/4"	6.4	17	29	13	39	0.91
SQ008	5/16"	7.9	19	31	12	36	0.91
SQ010	3/8"	9.5	21	35	11	33	0.91
SQ013	1/2"	12.7	24	40	10	30	0.91
SQ016	5/8"	15.9	27	50	9	27	0.91
SQ019	3/4"	19	30	60	8.5	25.5	0.91
SQ025	1"	25.4	36	80	7.5	22.5	0.91
SQ032	1-1/4"	32	43	110	6.5	19.5	0.91
SQ038	1-1/2"	38	49	160	5.5	16.5	0.91
SQ045	1-3/4"	45	56	200	5	15	0.91
SQ051	2"	50.8	63	250	4.5	13.5	0.91
SQ064	2-1/2"	63.5	75	350	4	12	0.91
SQ076	3"	76.2	88	550	3	9	0.91
SQ089	3-1/2"	89	102	700	2.5	7.5	0.91
SQ102	4"	102	115	800	2	6	0.91
