中频感应电炉专用软管

还原电炉绝缘软管 JY10

Applications:

it is suitable for conveying purified water through cable in induction electric furnace water cooling system with voltage of 10KV. Pure carbon - free, high insulation, wear - resistant, anti - aging.

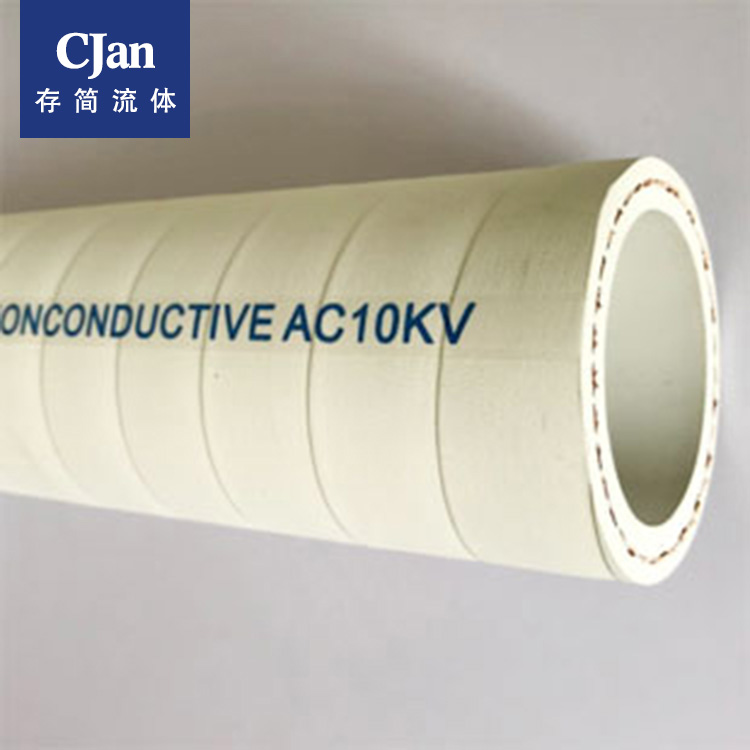

Construction:

Tube: white, smooth, pure, carbon-free, high-insulated EPDM synthetic rubber.

Reinforcement: high strength polyester fiber.

Cover: white or green, pure carbon - free, high - insulation EPDM synthetic rubber. Smooth for ID≤1",  fabric impression for ID＞1”.

Electrical resistance: high insulation, excellent low leakage current. At 10KV DC/AC voltage, the leakage current is less than 20 Micro Amp.

Temperature range: -40 °C +120 °C

Environmental standards: EU pahs-2, REACH, ROHS directive.

Technical standard: HG/T2184, CJAN

应用范围：

适用于电压10KV内感应电炉水冷系统穿电缆输送纯净水。纯净无碳，高绝缘，耐磨、抗老化。

软管结构：

内管：白色，光滑、纯净、无碳、高绝缘的EPDM合成橡胶。

增强层: 高强度聚酯纤维线。

外管：白色，光面（1"以上为布面）纯净无碳、高绝缘EPDM合成橡胶；其他绿色/红色/蓝色可根据客户要求定制。

耐电压：

高绝缘，优秀的低泄露电流。在10KV DC/AC电压下，泄露电流小于20 Micro Amp。

适用温度：-40 to 120 ℃。

环保标准：符合欧盟PAHS-2、REACH、ROHS指令。

技术标准：HG/T2184, CJAN
