塑筋增强硅胶管_医用呼吸器软管_医药级硅胶管_塑筋硅胶软管 SPSD

Products/产品目录

CJFLEX 塑筋硅胶软管 SPSD

优点：质轻，无金属成分，内外平滑
结构：铂金透明硫化硅胶管，内置PC塑筋增强
温度范围：-60°C 到+180°C
颜色：透明
符合认证：FDA, USP,BFR, USDA, ISO 10993
长度：标准长度为6米


电子邮箱	QQ在线	打印此页	收藏此页

Description/产品详情

CJFLEX 塑筋硅胶软管

TYPE SPSD

Application: It is especially used for the transportation of liquid, solid and powder in pharmaceutical industry and cosmetic industry. In the food industry, it can also be used for wine and alcohol with less than 50% alcohol. It is a transparent silicone hose, smooth inside and outside the wall, enabling the flow of material to flow smoothly, and can be used in conjunction with a medical respirator. It is resistant to suction while no metal components are detected.

Advantages: Lightweight, metal-free, smooth inside and outside

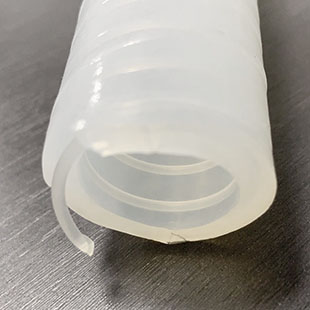

Construction: Platinum cured Silicone with single plastic spiral reinforcement

Color: Transparent

Temp. Range: -60°C and 180°C

Certification: FDA, USP, BFR, USDA, ISO-10993

Standard length: 6m

应用：推荐用于制药行业及美容化妆行业液体、固体、粉体的输送。在食品行业用于食用油、醋类的输送，也可以用输送葡萄酒和酒精度低于50%的白酒。透明硅胶软管，内外壁平滑，可以使物料流通顺畅，可与医用呼吸器配套使用，软管耐吸，同时探测不到金属成份。

优点：质轻，无金属成分，内外平滑

结构：铂金透明硫化硅胶管，内置PC塑筋增强

颜色：透明

温度范围：-60°C 到 +180°C

符合认证：FDA, USP, BFR, USDA, ISO-10993

长度：标准长度为6米

编码	内径		外径	弯曲半径	工作压力	爆破压力	真空度
编码	in.	mm	mm	mm	bar	bar	bar
SPSD006	1/4"	6.4	12.5	50	4.8	9.6	0.4
SPSD008	5/16"	7.9	14.0	70	4.6	9.2	0.4
SPSD010	3/8"	9.5	16.0	100	4.4	8.8	0.4
SPSD013	1/2"	12.7	19.0	120	4.2	8.4	0.4
SPSD016	5/8"	15.9	22.0	100	4	8	0.4
SPSD019	3/4"	19	25.0	120	3.6	7.2	0.4
SPSD025	1"	25.4	31.0	150	3.2	6.4	0.4
SPSD032	1-1/4"	32	38.0	180	3	6	0.4
SPSD038	1-1/2"	38	44.0	210	2.8	5.6	0.4
SPSD051	2"	50.8	60.0	300	2.5	5	0.4
