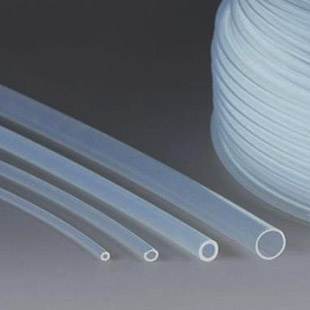

Construction: Smooth tube manufactured from PTFE/PFA/FEP material.

Applications: Tube has good electrical property, chemical resistance, weather resistance, non-stick performance and can be applied in electric, medical, vehicle, heat exchanger, pharmaceutical process.

结构: PTFE/PFA/FEP材料做的平滑单管

应用: 此软管有很好的绝缘性，耐化学性，耐候性，不粘性。广泛应用在电气、医疗、车辆、换热器、制药领域。

AWG	ID (mm)			OD (mm)
	Min	Normal	Max	S	T	L
30	0.25	0.3	0.38	0.76	0.76	0.6
28	0.33	0.38	0.46	0.84	0.84	0.68
26	0.41	0.48	0.53	0.92	0.92	0.76
24	0.51	0.56	0.66	1.16	1.06	0.86
23	0.58	0.66	0.74	1.26	1.1.16	0.96
22	0.66	0.71	0.81	1.31	1.21	1.01
21	0.74	0.81	0.89	1.41	1.31	1.11
20	0.81	0.86	0.97	1.66	1.46	1.16
19	0.91	0.96	1.74	1.76	1.56	1.26
18	1.01	1.07	1.17	1.87	1.67	1.37
17	1.14	1.19	1.32	1.99	1.79	1.49
16	1.29	1.34	1.47	2.14	1.94	1.64
15	1.45	1.5	1.65	2.3	2.1	1.8
14	1.62	1.68	1.83	2.48	2.28	2.08
13	1.83	1.93	2.05	2.73	2.53	2.33
12	2.05	2.16	2.31	2.96	2.77	2.56
11	2.31	2.41	2.57	3.21	3.01	2.81
10	2.59	2.69	2.84	3.49	3.29	3.09
9	2.9	3	3.15	4	3.76	3.4
8	3.06	3.38	3.53	4.38	4.14	3.78
7	3.65	3.76	3.94	4.76	4.52	4.16
6	4.11	4.22	4.41	5.22	4.98	4.72
5	4.62	4.72	4.95	5.72	5.48	5.22
4	5.18	5.28	5.53	6.28	6.04	5.78
3	5.81	5.94	6.2	6.94	6.7	6.44
2	6.55	6.68	6.93	7.68	7.44	7.18
1	7.34	7.46	7.75	8.46	8.22	7.96
0	8.26	8.38	8.69	9.38	9.14	8.8
