Applications:

Widely used in pharmaceuticals, cosmetics, food, and fine chemicals industries with corrosion resistance requirements. It has excellent chemical stability, temperature resistance and cleanliness, making it particularly suitable for suction and delivery of highly soluble corrosive chemicals.

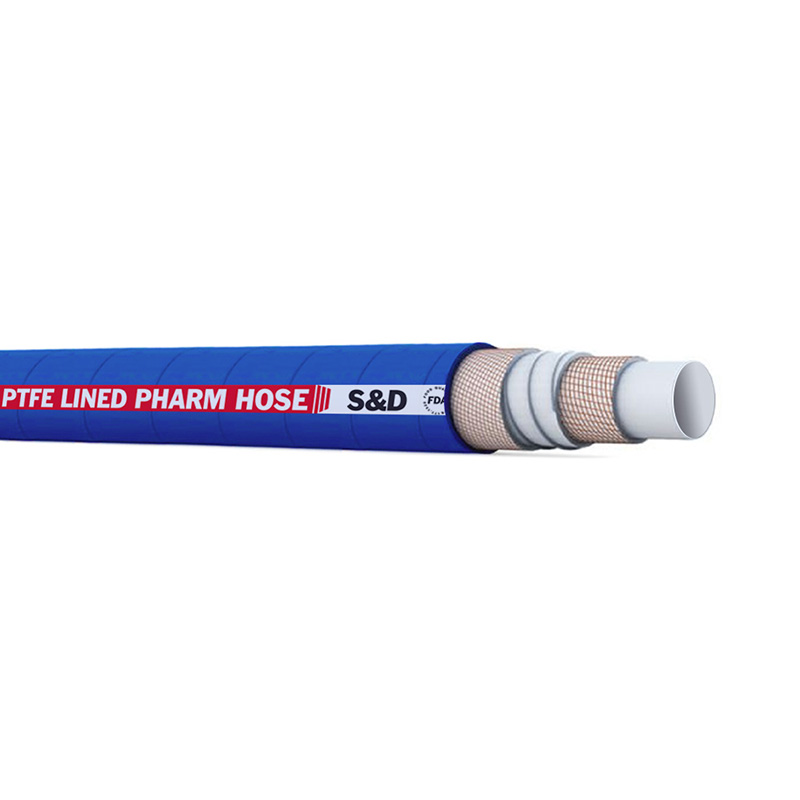

Construction:

Inner tube: Pure PTFE inner layer, smooth, impermeable, and heat-resistant.

Reinforcement: Double layer high-strength fiber weaving and spiral steel wire.

Cover: Blue EPDM, antioxidant, wear-resistant.

Temperature range: -40℃ to +170℃ (Depending on the medium).

Standard/Approval: FDA 21 CFR 177.1550, USP Class VI, GB4806.7, GB31604.30

编码	内径		外径	弯曲半径	工作压力		耐负压	包装长度
	inch	mm	mm	mm	psi	bar	bar	m
TPSD019	3/4"	19	31	100	240	16	0.9	20
TPSD025	1"	25.4	38	140	240	16	0.9	20
TPSD032	1-1/4"	31.8	44	180	240	16	0.9	20
TPSD038	1-1/2"	38	51	230	240	16	0.9	20
TPSD051	2"	50.8	65	290	240	16	0.9	20
