Alfagomma 405LE 食品级饮料软管
Applications:
Liquid and fat food-alcoholic beverages suction and delivery - max 75% proof.

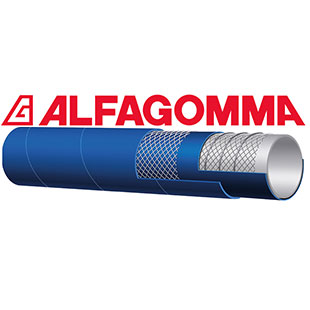

Construction:
Tube: White NBR, oil resistant, smooth
Reinforcement: High tensile textile cords with embedded steel helix wire
Cover: Blue NBR/PVC, abrasion, ozone and oil resistant
Temperature range: -30 °C ~+80 °C (-22 °F~+176 °F)
Sterilize with 130 °C (266 °F) steam for 30 minutes or with 5% soda solution
Standard/Approval:Meets FDA
使用范围:
酒类液体及油脂类食品的抽吸作业。
软管结构:
内管:白色 NBR, 耐油,光滑
增强层:高强力纤维编织及内置螺旋钢丝
外管:蓝色 NBR/PVC,抗氧化,耐磨,耐油性佳
温度范围:-30°C~+80°C
在130°C蒸汽下连续使用不超过30分钟或不超过5%含量的苏打水进行清洗消毒。
适用标准及认证:符合FDA认证
型号 | 内径 | 外径 | 弯曲半径 | 工作压力 | 爆破压力 | 真空度 | 重量 | |
inch | mm | mm | mm | bar | bar | bar | Kg/m | |
405LE | 3/4" | 19 | 31 | 57 | 10 | 30 | 0.91 | 0.74 |
405LE | 1" | 25 | 37 | 75 | 10 | 30 | 0.91 | 0.92 |
405LE | 1-1/4" | 32 | 44 | 96 | 10 | 30 | 0.91 | 1.09 |
405LE | 1-1/2" | 38 | 50 | 114 | 10 | 30 | 0.91 | 1.27 |
405LE | 2" | 51 | 63 | 153 | 10 | 30 | 0.91 | 1.64 |
405LE | 2-1/2" | 63 | 75 | 189 | 10 | 30 | 0.82 | 2.15 |
405LE | 3" | 76 | 88 | 228 | 10 | 30 | 0.82 | 2.58 |
405LE | 4" | 102 | 116 | 306 | 10 | 30 | 0.82 | 3.58 |
