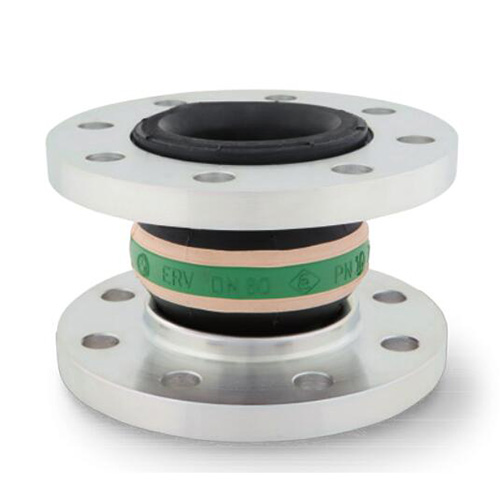

VITEX expansion joints in High-Tech design with seamless FKM lining, a flexible safety compensator for petrochemical facilities, engines, power stations and flue gas desulphurisation plants. Suitable for strain with aggressive media. Very good resistance against hot oils, benzene, xylene, fuels with an aromatic content of more than 50 %, bio diesel, aromatic / chlorinated hydrocarbons and mineral acids. Excellent resistance against weathering, ageing and ozone. Temperature range (depending on medium) from - 15° C up to + 110° C, temporarily up to + 130° C.

Liner : FKM, seamless, no permeation, electrically non-conductive

Reinforcement : PA textile cord, specially rubberized

Cover : ECO, electrically dissipative

Marking : White-green-white bands, ERV DN .., PN 16, production date Flanges 1) : Swiveling, DIN PN 10/16, carbon steel, zinc plated

应用范围：

专门设计用于高温油、石油类产品和腐蚀性化工介质。

膨胀节结构:

内层: FKM合成橡胶，不渗透，不导电。

增强层：PA帘线增强纤维，特殊硫化。

外层: ECO合成橡胶；白色环中间夹着一根绿色环。

适用温度: -15 to 110℃（短时间使用可达130度）

其他：也可定制成可耐真空的膨胀节。

附注：具体膨胀节长度，轴向压缩，轴向拉伸，横向位移，偏转角度请咨询我司。
