CJFLEX 氟硅胶钢丝硅胶管 FSQ

结构：内层氟硅胶，内置四层聚酯纤维及不锈钢丝增强，外层铂金硫化硅胶
温度范围：-60°C 到+180°C
颜色：标准为半透明，可定制其他颜色
符合认证：FDA, BFR, USDA
长度：标准长度为6米或10米


电子邮箱	QQ在线	打印此页	收藏此页

Description/产品详情

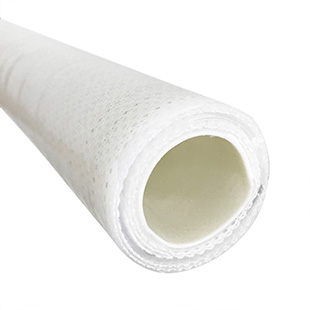

CJFLEX 氟硅胶钢丝硅胶管

TYPE FSQ

Application: It can be used in high and low temperature food, cosmetics, chemical, pharmaceutical and bioengineering with acidic or alkaline substances, such as suction of yogurt dairy products, edible oil, alkaline cosmetic mask, laundry fluid, or biological drugs with alkaline or acidic substances, etc.

Construction: Inner tube fluorosilicone, reinforced with four layers of polyester fiber and stainless steel wire, outer tube platinum cured silicone.

Temp. Range: -60°C and 180°C

Color: Translucent; other colors can be customized.

Advantages:

1- Smooth inner wall with good corrosion resistance, can be used to transport acid and alkali medium;

2- Odorless, tasteless, completely non-toxic, without any plasticizers and additives;

3- It has good air tightness and is not easy to penetrate substances,

4- Oil resistance, can be used to transport various edible oils, flavors, etc.

5- Abrasion resistance, can be used to transport high-pressure dry ice, ice water mixture.

6- Appearance anti-adhesion, vacuum-resistant, CIP and SIP cleanable.

Certification: FDA, BFR, USDA

Standard length: 6m or 10m

应用：可用于带有酸性或碱性物质的高低温食品、化妆品、化工、制药行业和生物工程用的液体或半液体流体，如抽吸酸奶乳制品，食用油，碱性化妆品面膜，洗衣液，或带有碱性或酸性的生物药物等。

结构：内层氟硅胶，内置四层聚酯纤维布及不锈钢丝增强，外层铂金硫化硅胶

温度范围：-60°C 到+180°C

颜色：标准为半透明，可定制其他颜色

优点：

1- 内壁光滑，耐腐蚀性好，可输送酸碱物质；

2- 无臭、无味，完全无毒，不含任何塑化剂和添加剂成分；

3- 具有良好的气密性，不易渗透物质，

4- 耐油性好，可以输送各种食用油，香精等。

5- 耐磨性好，可以用于输送高压干冰，冰水混合物。

6- 外表抗粘着性，可耐真空，可进行CIP及SIP清洗

符合认证：FDA, BFR, USDA

长度：标准长度为6米或10米

编码	内径		外径	弯曲半径	工作压力	爆破压力	真空度
编码	in.	mm	mm	mm	bar	bar	bar
FSQ006	1/4"	6.4	17.4	120	19.5	58.5	0.91
FSQ008	5/16"	7.9	19.0	130	18	54	0.91
FSQ010	3/8"	9.5	21.0	140	16.5	49.5	0.91
FSQ013	1/2"	12.7	24.0	150	15	45	0.91
FSQ016	5/8"	15.9	27.0	160	13.5	40.5	0.91
FSQ019	3/4"	19	30.0	170	12.5	37.5	0.91
FSQ022	7/8"	22	33.0	180	12	36	0.91
FSQ025	1"	25.4	36.0	190	11	33	0.91
FSQ032	1-1/4"	32	43.0	200	9.5	28.5	0.91
FSQ038	1-1/2"	38	49.0	210	8	24	0.91
FSQ045	1-3/4"	45	56.0	230	7.5	22.5	0.91
FSQ051	2"	50.8	62.0	250	6.5	19.5	0.91
FSQ064	2-1/2"	63.5	74.0	360	6	18	0.91
FSQ076	3"	76.2	88.0	500	4.5	13.5	0.91
FSQ089	3-1/2"	89	102.0	900	3.5	10.5	0.91
FSQ102	4"	102	115.0	1200	3	9	0.91
FSQ127	5"	127	141.0	-	2.5	7.5	0.91
FSQ152	6"	152	166.0	-	2	6	0.91
