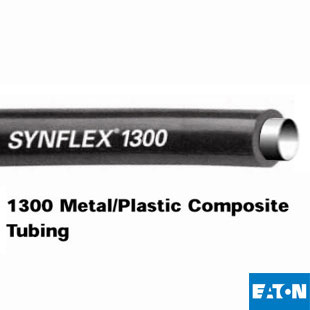

EATON SYNFLEX 1300 铝塑管

Features
• Combines the advantages of both metal and plastic tubing
• Very light (5 times lighter than a standard instrument control tube)
• Provides neat looking bends without special bending tools
• Corrosion and chemical-containing atmospheres resistant
• Excellent chemical compatibility
• Tubing contents dry thanks to aluminum barrier
• Enables direct burial without additional protection(whatever the installation)
• Connection with standard compression fittings
• 300m Standard lengths
• Standard color: black; other colors available on request
• Also available with »Halogen free« jacket
Applications
• Pneumatic instrumentation and control lines located in very wet or moist environments
• Air and gas sampling
• Corrosive environments
• ID surface best suited for air
Construction
• Polyethylene/Aluminum composite
Temperature range
• -40 °C to 80 °C

特征
•结合了金属管和塑料管的优点
•非常轻（比标准仪表控制管轻5倍）
•提供外观整洁的折弯，无需特殊折弯工具
•耐腐蚀和含化学品的大气
•良好的化学兼容性
•由于铝屏障，管道内容物干燥
•无需额外保护即可直接掩埋（无论安装方式如何）
•与标准压缩配件的连接
•300米标准长度
•标准颜色：黑色；其他颜色可根据要求提供
•也可提供»无卤«护套
应用
•位于非常潮湿或潮湿环境中的气动仪表和控制管线
•空气和气体取样
•腐蚀性环境
•很适合空气的ID表面
结构
•聚乙烯+铝复合材料
温度范围
•-40°C至80°C
