不锈钢丝编织平滑特氟龙管 TSS

Products/产品目录

不锈钢丝编织平滑特氟龙管 TSS

内径范围：3.2-25.4mm
结构：内管为完全平滑的PTFE软管，外覆不锈钢丝编织
温度范围：-70℃至+260℃
应用场合：输送强腐蚀性化学品，热空气，热油，蒸汽等
认证：符合FDA和USP认证


电子邮箱	QQ在线	打印此页	收藏此页

Description/产品详情

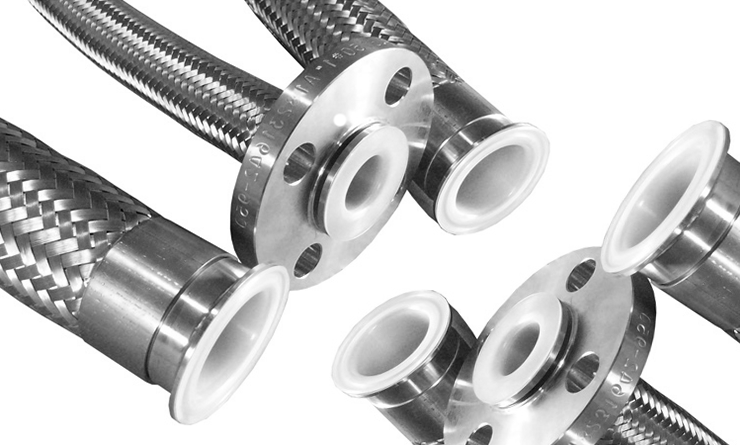

CJFLEX 不锈钢丝编织平滑特氟龙管

TYPE TSS

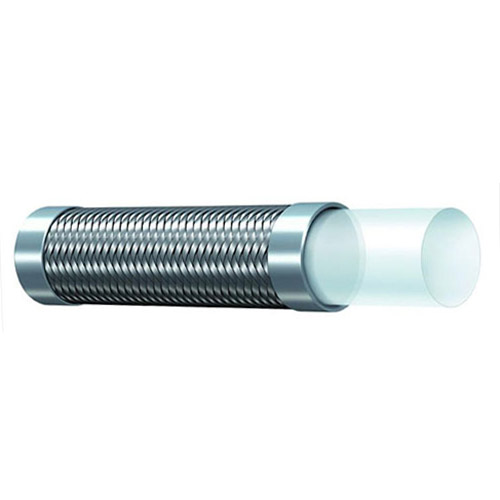

Construction: Type TSS is manufactured from smooth PTFE tube with stainless steel over braid.
Temp. Range: -70°C and 260°C.
Applications: For transporting corrosive chemicals, hot air, hot oil, steam and so on where a closed bending radius is not required. Not recommended for steam-cold water cycling.
Virgin and anti-static liners are available.
This hose has the advantage of zero friction, high pressure and a wide temperature range and is suitable for CIP and SIP cleaning.
Certification:FDA

结构：内管为完全平滑的PTFE软管，外覆不锈钢丝编织
温度范围：-70℃至+260℃
应用场合：输送强腐蚀性化学品，热空气，热油，蒸汽等。不宜用在蒸汽冷水循环。
可根据客户要求，定制成黑色抗静电内管
具有零摩擦、耐高压和耐温广的优势，可进行CIP和SIP清洗

符合FDA认证

编码	内径		外径	内管壁厚	弯曲半径	工作压力	爆破压力
编码	in.	mm	mm	mm	mm	bar	bar
TSS003	1/8"	3.2	6.5	1.00	60	250	750
TSS005	3/16"	4.8	7.7	0.75	60	200	600
TSS006	1/4"	6.4	9.3	0.65	75	185	555
TSS008	5/16"	7.9	11.3	0.75	100	180	540
TSS010	3/8"	9.5	13.1	0.75	125	170	510
TSS013	1/2"	12.7	16.5	0.75	140	130	390
TSS016	5/8"	15.9	19.5	0.90	160	100	300
TSS019	3/4"	19	23	0.90	200	75	225
TSS022	7/8"	22	26.5	1.00	300	65	195
TSS025	1"	25.4	29.8	1.05	400	65	195
