透明硅胶包覆螺旋钢丝增强波纹特氟龙管 TCWSSI

Products/产品目录

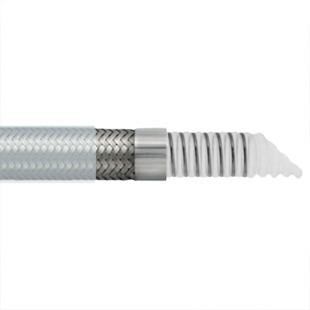

结构：内管为波纹状的PTFE软管，内置不锈钢螺旋钢丝加强，外覆不锈钢丝编织和透明硅胶层
温度范围：-60℃至+200℃
应用场合：特别适合用在输送蒸汽或者要求高负压的场合。硅胶保护层提供了更好的柔韧性和可清洁性，主要用于食品、生物及化妆品生产领域。
符合FDA认证。


电子邮箱	QQ在线	打印此页	收藏此页

Description/产品详情

CJFLEX 透明硅胶包覆螺旋钢丝增强波纹特氟龙管

TYPE TCWSSI

Construction: A helically convoluted PTFE (Polytetrafluorethylene) suction/pressure hose, with external vacuum wire with silicone vulcanized high tensile stainless steel braid. The hose has very good vacuum and kink resistance.
Temp. Range: -60°C and +200°C.
Applications: It should be specified for steam applications or when high vacuum hose applications are required. Generally excellent mechanical strength. Silicone vulcanized stainless steel braid ensures a high flexibility and easy cleanability. Making it ideal for Food, Bio, and Cosmetic industry.
Certification: FDA.
结构：内管为波纹状的PTFE软管，内置不锈钢螺旋钢丝加强，外覆不锈钢丝编织和透明硅胶层
温度范围：-60℃至+200℃
标准与防静电内衬可供选择。
应用场合：特别适合用在输送蒸汽或者要求高负压的场合。这个管子具有非常优秀的机械强度。抗扭结，即使在高温时都有极好的耐高压和耐真空性能。硅胶保护层提供了更好的柔韧性和可清洁性，主要用于食品、生物及化妆品生产领域。

符合FDA认证。

编码	内径		最小外径	壁厚	弯曲半径	工作压力	爆破压力
编码	in.	mm	mm	mm	mm	bar	bar
TCWSSI010	3/8"	9.5	19.1	0.75	25	110	440
TCWSSI013	1/2"	12.7	22.1	0.75	35	100	400
TCWSSI016	5/8"	15.9	27.9	0.75	45	85	340
TCWSSI019	3/4"	19	31.4	0.90	50	80	320
TCWSSI025	1"	25.4	39.4	1.00	70	60	240
TCWSSI032	1-1/4"	32	51.1	1.00	85	45	180
TCWSSI038	1-1/2"	38	56.4	1.00	110	35	140
TCWSSI051	2"	50.8	69.9	1.10	140	25	100
