CJFLEX 4层网纹硅胶管 SP-食品级硅胶软管

Products/产品目录

CJFLEX 4层网纹硅胶管 SP

品牌：CJFLEX
口径范围：6.4-102mm
温度范围：-60°C 到+200°C
应用范围：食品、饮料、饮用水、化妆品、医药、制药、中间体、半成品、原料药等高洁净行业
认证标准：FDA, USP,BFR, USDA, ISO 10993


电子邮箱	QQ在线	打印此页	收藏此页

Description/产品详情

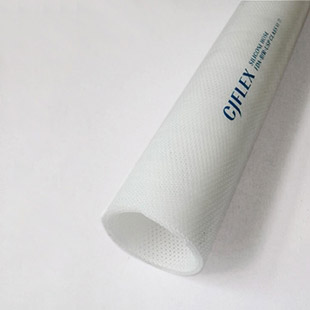

CJFLEX 铂金硫化4层网纹硅胶管

TYPE SP

Construction: Type SP is manufactured from High purity platinum cured Silicone with 4 layer polyester reinforcement.
Temp. Range: -60°C and 200°C
Colour: Translucent (Coloured covers available)
Applications: For transporting liquids at medium pressure where a closed bending radius is not required. It is not recommended for vacuum. Suitable for CIP and SIP cleaning.
Certification: FDA, USP, BFR, USDA, ISO 10993
Length: Standard maximum length is 10 meters

** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

应用：食品、饮料、饮用水、化妆品、医药、制药、中间体、半成品、原料药等高洁净行业
结构：铂金硫化硅胶管，内置四层聚酯纤维布增强
温度范围：-60°C 到+200°C
颜色：标准为半透明，可定制其他颜色
应用场合：中压下输送液体，可进行CIP及SIP清洗，不建议用于真空环境
符合认证：FDA, USP, BFR, USDA, ISO 10993

长度：标准最长长度为10米

编码	内径		外径	工作压力	爆破压力
编码	in.	mm	mm	bar	bar
SP006	1/4"	6.4	16.4	11.5	34.5
SP008	5/16"	7.9	18.4	10.5	31.5
SP010	3/8"	9.5	20.4	9.5	28.5
SP013	1/2"	12.7	23.4	8.5	25.5
SP016	5/8"	15.9	26.4	8	24
SP019	3/4"	19	29.4	7.5	22.5
SP025	1"	25.4	35.4	6.5	19.5
SP032	1-1/4"	32	43	5.5	16.5
SP038	1-1/2"	38	49	5	15
SP045	1-3/4"	45	56	4.5	13.5
SP051	2"	50.8	62	4	12
SP064	2-1/2"	63.5	75	3.5	10.5
SP076	3"	76.2	88	2.5	7.5
SP089	3-1/2"	89	101	2	6
SP102	4"	102	114	1.7	5.1
