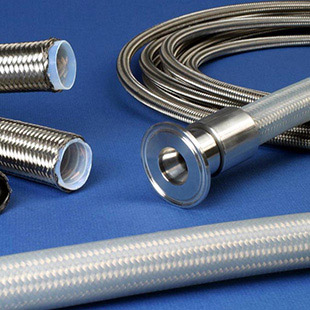

硅胶包覆不锈钢丝编织平滑特氟龙管 TSSSI

Products/产品目录

内径范围：4.8-25.4mm
结构：内管为完全平滑的PTFE软管，外覆不锈钢丝编织和透明硅胶层
温度范围：-60℃至+200℃
应用场合：输送强腐蚀性化学品，热空气，热油，蒸汽等
认证：符合FDA和USP认证


电子邮箱	QQ在线	打印此页	收藏此页

Description/产品详情

CJFLEX 硅胶包覆不锈钢丝编织平滑特氟龙管

TYPE TSSSI

Construction: Type TSSSI is manufactured from smooth PTFE tube with stainless steel over braid and transparent silicone cover.
Temp. Range: -60°C and 200°C.
Applications: For transporting corrosive chemicals, hot air, hot oil, steam and so on where a closed bending radius is not required. Not recommended for steam-cold water cycling.
Virgin and anti-static liners are available.
This hose has the advantage of zero friction, high pressure and a wide temperature range and is suitable for CIP and SIP cleaning.

Certification: FDA

结构：内管为完全平滑的PTFE软管，外覆不锈钢丝编织和透明硅胶层

温度范围：-60℃至+200℃
应用场合：输送强腐蚀性化学品，热空气，热油，蒸汽等。不宜用在蒸汽冷水循环。
可根据客户要求，定制成黑色抗静电内管
可根据客户要求，硅胶层也可定制成白色或彩色
具有表面光滑易擦洗、零摩擦、耐高压和耐温广的优势，可进行CIP和SIP清洗
符合FDA认证

编码	内径		最小外径	内管壁厚	弯曲半径	工作压力	爆破压力
编码	in.	mm	mm	mm	mm	bar	bar
TSSSI005	3/16"	4.8	10.1	0.75	60	200	600
TSSSI006	1/4"	6.4	11.6	0.65	75	185	555
TSSSI008	5/16"	7.9	13.6	0.75	100	180	540
TSSSI010	3/8"	9.5	14.8	0.75	125	170	510
TSSSI013	1/2"	12.7	18.3	0.75	140	130	390
TSSSI016	5/8"	15.9	23.7	0.90	160	100	300
TSSSI019	3/4"	19	27.2	0.90	200	75	225
TSSSI022	7/8"	22	30.4	1.00	300	65	195
TSSSI025	1"	25.4	35.9	1.05	400	65	195
