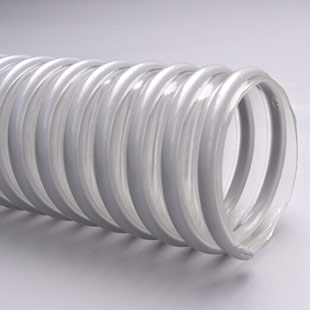

食品级塑筋增强PU软管 LUSD
Applications: Designed for light suction
and transport of abrasive particles, granules, waste, dust, in wood, pharmaceutical
and plastic industry, sweepers, lawn mowers. Good resistance to hydrolysis,
microbes and abrasion.
Features: Smooth bore, excellent flexibility,
solid construction. Flexible ducting made out of food-grade polyether
polyurethane wall in accordance with the modified EU regulation 10/2011,
reinforced with shock-resistant PVC spiral.
Colour: transparent with red plastic spiral.
Temperature range: -30°C~ + 80°C
Standards: EU10/2011.
使用范围:
设计用于低压抽吸和磨损性物料输送,例如:颗粒、粉粒、垃圾以及灰尘等。适用于木工、制药、塑料行业;吸尘器、割草器。具有良好的耐霉菌耐水解性能。
特性:光滑、弹性好、结构牢固。柔软的聚醚型聚氨酯(ETHER PU)材质软管,浅灰或浅黄色PVC螺旋塑筋加强,符合欧盟10/2011食品接触材料标准。
颜色:透明,带浅灰或浅黄色螺旋塑筋加强
温度:-30°C~+ 80°C
认证:EU10/2011
编码 | 内径 | 壁厚 | 弯曲半径 | 工作压力 | 真空度 | 重量 | 每卷长度 | |
inch | mm | mm | mm | bar | bar | kg/m | m | |
LUSD016 | 5/8" | 16 | 0.50 | 16 | 1.5 | 0.60 | 0.100 | 20 |
LUSD020 | 3/4" | 20 | 0.50 | 20 | 1.5 | 0.60 | 0.140 | 20 |
LUSD025 | 1" | 25 | 0.55 | 25 | 1.5 | 0.60 | 0.160 | 20 |
LUSD030 | DN30 | 30 | 0.55 | 30 | 1.5 | 0.60 | 0.195 | 20 |
LUSD032 | 1-1/4" | 32 | 0.55 | 32 | 1.5 | 0.60 | 0.210 | 20 |
LUSD035 | DN35 | 35 | 0.55 | 35 | 1.5 | 0.60 | 0.240 | 20 |
LUSD038 | 1-1/2" | 38 | 0.60 | 38 | 1.5 | 0.50 | 0.260 | 20 |
LUSD040 | 1-1/2" | 40 | 0.60 | 40 | 1.5 | 0.50 | 0.265 | 20 |
LUSD045 | DN45 | 45 | 0.60 | 45 | 1.5 | 0.45 | 0.300 | 20 |
LUSD050 | 2" | 50 | 0.60 | 50 | 1 | 0.45 | 0.335 | 20 |
LUSD055 | DN55 | 55 | 0.60 | 55 | 1 | 0.30 | 0.370 | 20 |
LUSD060 | DN60 | 60 | 0.60 | 60 | 1 | 0.30 | 0.405 | 20 |
LUSD063 | 2-1/2" | 63 | 0.70 | 63 | 1 | 0.30 | 0.425 | 20 |
LUSD065 | DN65 | 65 | 0.70 | 65 | 1 | 0.30 | 0.460 | 20 |
LUSD070 | DN70 | 70 | 0.70 | 70 | 1 | 0.25 | 0.520 | 20/30 |
LUSD075 | 3" | 75 | 0.70 | 75 | 1 | 0.25 | 0.580 | 20/30 |
LUSD080 | DN80 | 80 | 0.70 | 80 | 1 | 0.16 | 0.630 | 20/30 |
LUSD090 | DN90 | 90 | 0.70 | 90 | 1 | 0.16 | 0.750 | 20/30 |
LUSD100 | 4" | 100 | 0.70 | 100 | 1 | 0.16 | 0.845 | 20/30 |
LUSD102 | DN102 | 102 | 0.70 | 102 | 0.8 | 0.16 | 0.880 | 20/30 |
LUSD110 | DN110 | 110 | 0.75 | 110 | 0.8 | 0.16 | 0.915 | 20/30 |
LUSD120 | DN120 | 120 | 0.75 | 120 | 0.8 | 0.16 | 1.025 | 20/30 |
LUSD125 | 5" | 125 | 0.80 | 125 | 0.8 | 0.16 | 1.075 | 20/30 |
LUSD140 | DN140 | 140 | 0.85 | 140 | 0.6 | 0.16 | 1.280 | 20 |
LUSD150 | 6" | 150 | 0.85 | 150 | 0.6 | 0.16 | 1.440 | 20 |
LUSD160 | DN160 | 160 | 0.90 | 160 | 0.5 | 0.16 | 1.600 | 20 |
LUSD180 | DN180 | 180 | 1.00 | 180 | 0.5 | 0.16 | 1.910 | 10 |
LUSD203 | 8" | 203 | 1.10 | 203 | 0.4 | 0.16 | 2.225 | 10 |
LUSD250 | 10" | 250 | 1.10 | 250 | 0.3 | 0.15 | 3.000 | 10 |
