应用:

BLAUDIECK LGD适用于各种食品行业饮料行业酿酒行业的各类输送与排吸。

优点:

卫生级光滑内胶对气味没有任何影响

内胶及外胶均耐油脂及腐蚀性物质

耐臭氧，耐候性，耐磨方面的极好性能

软管与常用的清洗消毒剂相容，可以用常规方法清洗或者CIP系统清洗

可以用+110℃蒸汽清洗（+130℃最多20分钟）

技术参数:

内胶：高级NBR橡胶，白色，光滑

加强层：螺旋钢丝（特殊的防真空设计）

外胶：NBR外胶层，蓝色

温度范围：+80℃（+90℃最多20分钟）

适用标准：符合BfR XXI及FDA认证

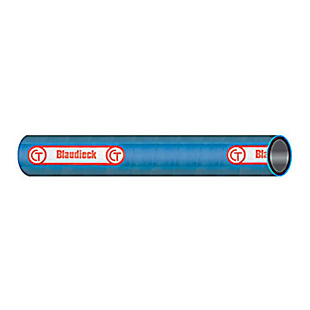

标志：红白“blaudieck”标志于蓝色表面

BLAUDIECK®LGDS

The vacuum resistant beverage and foodstuffs hose

Applications:

BLAUDIECK®LGDS-hoses as a vacuum resistant construction with an integrated steel wire helix offer high quality at reasonable prices. The hygienically smooth, non-porous lining is absolutely neutral to taste and odour and thus suitable for various applications in the beverage and foodstuffs industry. They are resistant to commonly used cleaning and disinfecting products and can easily be cleaned conventionally or by CIP installations. Both, lining and cover are resistant to oil, fats and caustics.

Together with our swaged coupling systems and rubber protection rings it becomes the ideal hose assembly!

Description:

white, non-porous and smooth NBR lining

absolutely neutral to taste and odour

lining and cover both resistant to oil and fats

temperature range up to +80°C    (+90°C max. 20 minutes)

can be steamed up to +110 °C     (+130 °C max. 20 minutes)

working pressure up to 10 bar

reinforcements: synthetic fibres

NBR-cover, resistant to ozone, weather, UV and abrasion

meets the recommendation XXI of BfR and FDA

内径		外径	工作压力	爆破压力	弯曲半径	重量	包装长度
(in)	(mm)	(mm)	(bar)	(bar)	(mm)	(kg/m)	(m)
3/4	19	29	10	≥ 40	60	0.600	40
1	25	37	10	≥ 40	80	0.880	40
1-1/4	32	44	10	≥ 40	100	1.100	40
1-1/2	38	51	10	≥ 40	115	1.430	40
1-9/16	40	54	10	≥ 40	130	1.640	40
2	50	66	10	≥ 40	150	2.170	40
2-1/8	53	67	10	≥ 40	160	2.000	40
2-3/8	60	74	10	≥ 40	170	2.350	40
2-1/2	63	77	10	≥ 40	180	2.470	40
2-5/8	65	81	10	≥ 40	190	2.870	40
3	75	91	10	≥ 40	225	3.310	40
3-1/8	80	96	10	≥ 40	300	3.510	40
4	100	118	10	≥ 40	350	4.650	40
