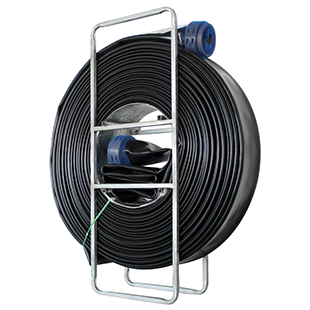

NBR/NBR扁平油管 NNF
Application:
The transportation of petrochemical products
such as oil fields, chemical plants, ships, ships supply etc. It is also widely
used in the field of fire protection.
Construction:
Tube: NBR.
Reinforcements: Polyester fiber.
Cover: NBR
Temperature range: –20°C~+100°C
Standard Color: Red, yellow or black, other color
on request.
Temperature Range:-20
to 100℃
应用范围:
油田、化工厂等石油化工产品的输送;船 舶、舰艇补给输油; 消防。
软管结构:
内管:丁腈橡胶。
增强层:涤纶编织。
外管:丁腈橡胶。
颜色:标准颜色为红色、黄色或黑色,其它颜色可以定制。
适用温度: -20
to 100℃
编码 |
内径 |
工作压力 |
爆破压力 |
|
inch |
mm |
Mpa |
Mpa |
|
NNF025 |
1" |
25 |
1.3-1.6-2.0 |
3.9-4.8-6.0 |
NNF040 |
1-1/2" |
40 |
1.3-1.6-2.0 |
3.9-4.8-6.0 |
NNF050 |
2" |
50 |
1.3-1.6-2.0 |
3.9-4.8-6.0 |
NNF065 |
- |
65 |
1.3-1.6-2.0 |
3.9-4.8-6.0 |
NNF080 |
- |
80 |
1.3-1.6 |
3.9-4.8 |
NNF100 |
4" |
100 |
1.0-1.3 |
3.0-3.9 |
NNF125 |
5" |
125 |
1.0 |
3.0 |
NNF150 |
6" |
150 |
1.0 |
3.0 |
