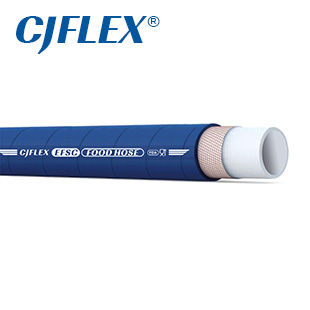

CJFLEX EFSC

EPDM食品级热水和蒸汽软管

Applications:

For steam cleaning at Temperatures up to + 165 °C (Red cover only) and hot water washing in food processing plants. Also for transfer of hot liquid foodstuffs. ID 9.5 to 25.4mm, suitable for reel mounted applications. When the medium is steam, in order to avoid bursting, special needling should be done on the outer layer of the hose. Please contact us for more details.

Construction:

Regular type

Tube: White EPDM, High temperature resistant, smooth.

Reinforcement: High strength synthetic fiber.

Cover: Blue EPDM, High temperature resistant, Anti-aging, special needling treatment, smooth for ID≤25.4 mm, fabric impression for ID≥32mm.

Ultra high temperature type

Tube: White EPDM, High temperature resistant, smooth.

Reinforcement: High temperature resistant and high strength synthetic fiber.

Cover: Red EPDM, High temperature resistant, Anti-aging, smooth, special needling treatment, ID≤25.4mm

Temperature range:

Water: - 40°C～+ 100°C, WP = 20 bar/10bar .

Saturated or superheated steam: +120°C for blue cover; +165°C for red cover, WP = 6 bar, ID≤25.4mm.

Standard/Approval: FDA 21 CFR 177.2600, GB 4806.11-2016.

使用范围：

可输送牛奶，果汁，饮料，葡萄酒，食用油，饮用水等食品，可用于呼吸设备、潜水设备及输送高温流体食品。同时可用于输送热水和高达+165°C的蒸汽（超高温款，红色外胶），适用于牛奶场、奶制品车间、罐头厂、水产品市场等工作场合的冲洗，1”以下可在卷轴上缠绕。当介质为蒸汽时，为了避免爆裂，软管外胶采用了特殊针刺工艺。

软管结构：

常规款：

内管：白色EPDM，耐高温，光滑

增强层：高强度合成纤维

外管：蓝色EPDM，耐高温，抗老化，特殊针刺工艺处理，ID≤25.4mm表面光滑，ID≥32mm表面布纹。

超高温款：

内管：白色EPDM，耐高温，光滑

增强层：耐高温高强度合成纤维

外管：红色EPDM，耐高温，抗老化，表面光滑，特殊针刺工艺处理 ，ID≤25.4mm。

温度范围：

水：-40°C～+100°C，工作压力20bar或10bar

饱和或过热蒸汽：

常规款：蓝色外胶最高到+120°C；

超高温款：红色外胶最高到+165°C /工作压力为6bar ，ID≤25.4mm

适用标准及认证：FDA 21 CFR 177.2600, GB 4806.11-2016.
