应用:

用于安全输送氧气及燃气，可广泛应用于各工程公司，铸造厂，船厂，钢铁厂，汽车厂及地下隧道施工等行业。

优点:

非常柔软，耐臭氧及候性好

表面光滑且防尘

尺寸稳定，耐磨性好

技术参数:

内胶：EPDM橡胶，黑色，光滑

增强层：合成纤维

外胶：EPDM橡胶，红色走乙炔，蓝色

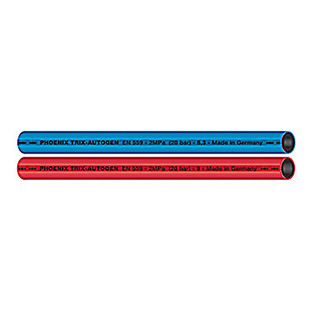

TRIX®oxyacetylene hose

For the safe transport of oxygen and fuel gases

Applications:

TRIX®oxyacetylene hose is designed for the transport of oxygen and fuel gases. It meets the latest regulations of the EN 559 standard and thus offers the highest possible safety. The hose is extremely robust, flexible, resistant to ozone and weather and has a smooth, dirt-proof cover. The excellent quality is the reason, why TRIX®oxyacetylene hoses are most popular and are being used for decades in installation and heating system companies, foundries, shipyards, for the construction of bridges, in the steel and car body construction, over- and underground workings, in welding shops and at manufacturers of welding apparatus.

Description:

black, non-porous and smooth EPDM lining

temperature range up to +60°C

working pressure up to 20 bar

reinforcements: synthetic fibres

EPDM-cover, resistant to ozone, weather, UV and abrasion

highly flexible, robust

non-buckling, dimensionally stable

release agent- and fat-free, free from any product harmful to lacquer

产品型号	内径		外径	工作压力	爆破压力	弯曲半径	重量	包装长度
TRIX—氧气乙炔管	(in)	(mm)	(mm)	(bar)	(bar)	(mm)	(kg/m)	(m)
氧气管 - 蓝色
	1/6	4	11	20	60	20	0.130	40
	1/4	6.3	13.3	20	60	30	0.170	40
	1/4	6.3	16.3	20	50	30	0.260	40
	3/8	9	19	20	60	45	0.330	40
	7/16	11	21	20	60	55	0.370	40
	1/2	12.5	22.5	20	60	60	0.400	40
	5/8	16	28	20	60	80	0.600	40
乙炔管 - 红色
	1/6	4	11	20	60	20	0.130	40
	1/4	6.3	13.3	20	60	30	0.170	40
	3/8	9	16	20	60	45	0.210	40
	7/16	11	18	20	60	55	0.250	40
	1/2	12.5	21.5	20	60	60	0.370	40
	5/8	16	25	20	60	80	0.430	40
