CJFLEX 双层钢丝高压防静电特氟龙管
TYPE TDAS

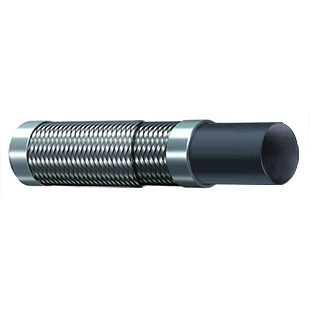

Construction:
The
hose is manufactured from antistatic PTFE resin with double, bunch braided
SS304 stainless steel, high tensile braid. Non-sticking, easy to clean; Non-inflammable.
Temp. Range: -70°C and +260°C.
Applications: For gas
applications.
Certification: FDA
结构:里层为平滑防静电PTFE软管,外覆SS304双层不锈钢编织。耐扭结,易清洗,不易燃。
温度范围:-70℃至+260℃
应用:软管通常用来传输高压力状态下的低温气体。
符合FDA认证。
编码 |
内径 |
外径 |
弯曲半径 |
工作压力 |
爆破压力 |
|
in. |
mm |
mm |
mm |
bar |
bar |
|
TDAS006 |
1/4" |
6.4 |
11.5 |
65 |
350 |
1100 |
TDAS008 |
5/16" |
8.0 |
13.3 |
90 |
350 |
1100 |
TDAS010 |
3/8" |
9.5 |
15.1 |
100 |
350 |
1100 |
TDAS013 |
1/2" |
13.0 |
18.9 |
120 |
350 |
1100 |
TDAS016 |
5/8" |
15.9 |
22.7 |
160 |
350 |
1100 |
TDAS019 |
3/4" |
19.0 |
29.9 |
200 |
350 |
1100 |
TDAS025 |
1" |
25.4 |
36.9 |
250 |
350 |
1100 |
