应用:

TRIX ROTSTRAHL 是一款多用途软管，用于一般工业，建筑，园艺，农业等等。 软管非常柔软，耐臭氧，环境，操作温度可从-40℃至+100℃。 该软管也可用于清洗，粉末，灌装，喷水及排水

优点:

非常柔软，寿命长

EPDM外胶层，耐臭氧，环境，UV

不含脱芯剂，不含任何有害喷涂物质。低流量损失。

技术参数:

內胶：黑色，光滑，均匀EPDM内胶

加强层：合成纤维

外胶：EPDM材质

工作压力：10至20bar

温度范围：-40℃至+100℃

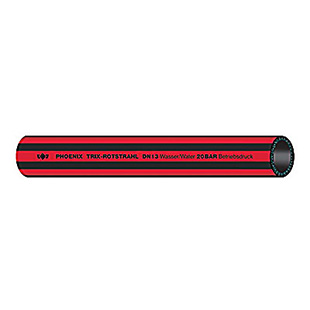

TRIX-ROTSTRAHL®

The professional water hose

Application:

TRIX-ROTSTRAHL®is the water hose for use in industry, local authorities, construction and civil engineering, landscape gardening, agriculture and many other applications. Thanks to its design and construction it is highly flexible and robust, ozone- and weather-resistant, and can operate at temperatures from – 40°C to +100°C. The ideal hose for cleaning and sprinkling, filling, spraying, rinsing and draining.

Description:

black, non-porous and smooth EPDM lining

working pressure up to 20 bar

temperature range from – 40°C up to +100°C

reinforcements: synthetic fibres

highly flexible, robust

EPDM-cover, resistant to ozone and UV

release agent- and fat-free, free from any product harmful to lacquer

low resistance to flow

内径		外径	工作压力	爆破压力	弯曲半径	重量	包装长度
(in)	(mm)	(mm)	(bar)	(bar)	(mm)	(kg/m)	(m)
1/2	13	19	20	≥ 60	46	0.245	40 50 80
5/8	16	23	20	≥ 60	60	0.330	40 50 80
3/4	19	27	20	≥ 60	65	0.435	40 50 80
7/8	22	31	20	≥ 60	70	0.520	40 50
1	25	34	20	≥ 60	110	0.580	41 50
1-1/8	28	38	15	≥ 45	120	0.715	40
1-3/16	30	41	15	≥ 45	140	0.835	40
1-1/4	32	43	15	≥ 45	150	0.870	40
1-3/8	35	46	15	≥ 45	180	0.940	40
1-1/2	38	50	15	≥ 45	200	1.100	40
1-9/16	40	52	15	≥ 45	240	1.150	40
1-5/8	42	54	10	≥ 30	250	1.250	40
2	50	64	10	≥ 30	300	1.565	40
