Dixon Camlock DA型

Products/产品目录

Camlock DA型

尺寸：1"- 6"
材质：铝合金, 黄铜，316不锈钢等
制造标准：MIL-C-27487F
特征:配合king 系列套筒可以保障安全可靠
应用：广泛应用于一般无毒无害液体传输。


电子邮箱	QQ在线	打印此页	收藏此页

Description/产品详情

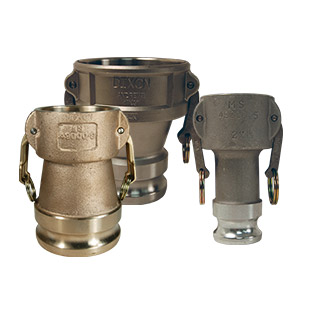

Dixon Cam & Groove Reducing Coupler x Adapter (Type DA)
Dixon Camlock DA型

Part Number	Material	Coupler Size	Adapter Size
1015-DA-AL	356T6 Aluminum	1" (25mm)	1-1/2" (40mm)
1015-DA-SS	316 Stainless Steel	1" (25mm)	1-1/2" (40mm)
1510DAAL	356T6 Aluminum	1-1/2" (40mm)	1" (25mm)
1510-DA-SS	316 Stainless Steel	1-1/2" (40mm)	1" (25mm)
1520-DA-AL	356T6 Aluminum	1-1/2" (40mm)	2" (50mm)
1520-DA-SS	316 Stainless Steel	1-1/2" (40mm)	2" (50mm)
2010-DA-AL	356T6 Aluminum	2" (50mm)	1" (25mm)
2010-DA-SS	316 Stainless Steel	2" (50mm)	1" (25mm)
2015-DA-AL	356T6 Aluminum	2" (50mm)	1-1/2" (40mm)
2015-DA-SS	316 Stainless Steel	2" (50mm)	1-1/2" (40mm)
2025-DA-AL	356T6 Aluminum	2" (50mm)	2-1/2" (65mm)
2025-DA-SS	316 Stainless Steel	2" (50mm)	2-1/2" (65mm)
2030-DA-AL	356T6 Aluminum	2" (50mm)	3" (75mm)
2030-DA-SS	316 Stainless Steel	2" (50mm)	3" (75mm)
2040-DA-AL	356T6 Aluminum	2" (50mm)	4" (100mm)
2040-DA-SS	316 Stainless Steel	2" (50mm)	4" (100mm)
2520-DA-SS	316 Stainless Steel	2-1/2" (65mm)	2" (50mm)
2530-DA-SS	316 Stainless Steel	2-1/2" (65mm)	3" (75mm)
3015-DA-AL	356T6 Aluminum	3" (75mm)	1-1/2" (40mm)
3015-DA-SS	316 Stainless Steel	3" (75mm)	1-1/2" (40mm)
3020-DA-AL	356T6 Aluminum	3" (75mm)	2" (50mm)
3020-DA-BR	Brass	3" (75mm)	2" (50mm)
3020-DA-MI	Unplated Malleable Iron	3" (75mm)	2" (50mm)
3020-DA-SS	316 Stainless Steel	3" (75mm)	2" (50mm)
3025-DA-AL	356T6 Aluminum	3" (75mm)	2-1/2" (65mm)
3025-DA-SS	316 Stainless Steel	3" (75mm)	2-1/2" (65mm)
3040-DA-AL	356T6 Aluminum	3" (75mm)	4" (100mm)
3040-DA-BR	Brass	3" (75mm)	4" (100mm)
3040-DA-SS	316 Stainless Steel	3" (75mm)	4" (100mm)
3060-DA-AL	356T6 Aluminum	3" (75mm)	6" (150mm)
3060-DA-SS	316 Stainless Steel	3" (75mm)	6" (150mm)
4020-DA-AL	356T6 Aluminum	4" (100mm)	2" (50mm)
4020-DA-SS	316 Stainless Steel	4" (100mm)	2" (50mm)
4025-DA-AL	356T6 Aluminum	4" (100mm)	2-1/2" (65mm)
4025-DA-SS	316 Stainless Steel	4" (100mm)	2-1/2" (65mm)
4030-DA-AL	356T6 Aluminum	4" (100mm)	3" (75mm)
4030-DA-BR	Brass	4" (100mm)	3" (75mm)
4030-DA-MI	Unplated Malleable Iron	4" (100mm)	3" (75mm)
4030-DA-SS	316 Stainless Steel	4" (100mm)	3" (75mm)
4050-DA-AL	356T6 Aluminum	4" (100mm)	5" (125mm)
4060-DA-AL	356T6 Aluminum	4" (100mm)	6" (150mm)
4060-DA-SS	316 Stainless Steel	4" (100mm)	6" (150mm)
5030-DA-AL	356T6 Aluminum	5" (125mm)	3" (75mm)
5030-DA-SS	316 Stainless Steel	5" (125mm)	3" (75mm)
5040-DA-AL	356T6 Aluminum	5" (125mm)	4" (100mm)
5040-DA-SS	316 Stainless Steel	5" (125mm)	4" (100mm)
5060-DA-AL	356T6 Aluminum	5" (125mm)	6" (150mm)
5060-DA-SS	316 Stainless Steel	5" (125mm)	6" (150mm)
6030-DA-AL	356T6 Aluminum	6" (150mm)	3" (75mm)
6030-DA-SS	316 Stainless Steel	6" (150mm)	3" (75mm)
6040-DA-AL	356T6 Aluminum	6" (150mm)	4" (100mm)
6040-DA-BR	Brass	6" (150mm)	4" (100mm)
6040-DA-MI	Unplated Malleable Iron	6" (150mm)	4" (100mm)
6040-DA-SS	316 Stainless Steel	6" (150mm)	4" (100mm)
6050-DA-AL	356T6 Aluminum	6" (150mm)	5" (125mm)
6050-DA-SS	316 Stainless Steel	6" (150mm)	5" (125mm)
8060-DA-AL	356T6 Aluminum	8" (200mm)	6" (15

美国DIXON工业接头

DIXON集团的创立可以追溯到100多年前，悠久的历史和对高品质产品的不懈追求造就了DIXON在工业管接头领域的顶尖品质。现今DIXON工业集团的客户遍布全球各地，是国际公认的软管接头、阀门、及辅助部件的最大最好的生产销售集团之一。
DIXON产品广泛应用于食品、矿业、石油、化工处理、精炼、食品加工、医药、流动罐车、采矿、消防、运输、航海、建筑、核能和多种制造业。

我司可现货供应以下类型产品：
DIXON 蒸汽管接三件套
DIXON Camlock凸轮锁紧式快速接头
DIXON Boss蒸汽专用快速接头
DIXON AIR KING空气专用快速接头
DIXON Surelock多用途快速接头
DIXON DIX-LOCK快锁式快速接头
DIXON Dual Lock双重锁扣快速接头

制造标准：MIL-C-27487F
特征:配合king 系列套筒可以保障安全可靠，经过特殊处理的黄铜、不锈钢把手满足特殊化学品的需求
，boss安全把手系列防止误操作造成的非正常开启
材质：铝合金, 黄铜，316不锈钢等
尺寸：1"- 6"
应用：广泛应用于一般无毒无害液体传输。
