CJan无味呼吸软管 BR
Applications:
Special need for the human
diving, fire, chemical oxygen delivery hose breathing. Providing the body clean
no smell, health and safety of oxygen. PA rubber shield and an ideal
combination of softness.
Advantage:
Hose inner walls with PA shielding, guarantee human breathing clean, healthy
and safe oxygen. Mirror-smooth inner wall of the gas more smooth
Traditional rubber breathing tube rubber layer due to contact with oxygen, the
smell of rubber can not be completely eliminated.

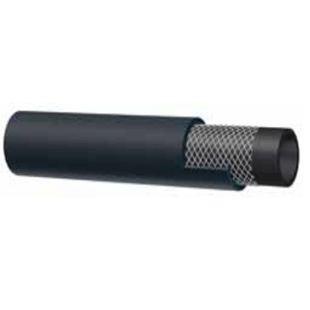

Construction:
Shield: special thin layer of tough PA
Tube: Black high-grade anti-oil, air tightness NBR synthetic rubber;
Reinforcement: High-strength synthetic fiber braided layer;
Cover: Black anti-static, anti-aging EPDM rubber (The color can be
customized).
Temperature range: -30 °C +100 °C
Standard/Approval: ROHS.
使用范围:
适用人体潜水、消防、化工等特殊需要输送氧气呼吸的软管。为人体提供纯净无异味、健康安全的氧气。PA屏蔽层与橡胶理想结合,柔软性好。
优点:
软管内管带PA屏蔽层,完全无味,内壁镜面光滑,气体更畅通。传统的橡胶呼吸管因橡胶层接触氧气,橡胶中的异味无法完全杜绝。
软管结构:
内管屏蔽层:特种薄而坚韧的PA层
内胶管: 黑色高等级抗油NBR 合成橡胶
增强层: 高强度合成纤维编织层
温度范围: -30 °C +100 °C
编码 | 内径 | 外径 | 工作压力 | 爆破压力 | 重量 | 长度 | |
inch | mm | mm | bar | bar | Kg/m | m | |
BR006 | 1/4" | 6.4 | 12.6 | 20 | 80 | 0.15 | 100 |
BR008 | 5/16" | 7.9 | 15 | 20 | 80 | 0.2 | 100 |
BR010 | 3/8" | 9.5 | 17 | 20 | 80 | 0.23 | 100 |
