不锈钢丝编织玻纤包覆波纹特氟龙管 TCGS

内径范围：9.5-50.8mm
结构：内管为波纹状的PTFE软管，外覆不锈钢丝编织
温度范围：-70℃至+260℃
应用场合：输送强腐蚀性化学品，热空气，热油，蒸汽等
认证：符合FDA和USP认证


电子邮箱	QQ在线	打印此页	收藏此页

Description/产品详情

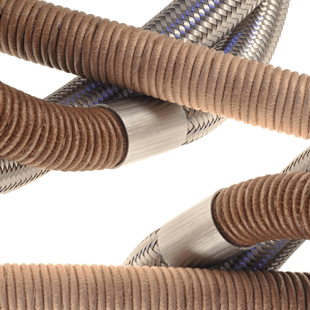

CJFLEX 不锈钢丝编织玻纤包覆波纹特氟龙管

TYPE TCGS

Construction: Type TCS is manufactured from convoluted PTFE tube with stainless steel over braid.
Temp. Range: -70°C and 260°C.
Applications: For transporting corrosive chemicals, hot air, hot oil, steam and so on. Not recommended for steam-cold water cycling.
Virgin and anti-static liners are available.
This hose has the advantage of superb flexibility, zero friction, high pressure and a wide temperature range and is suitable for CIP and SIP cleaning.
Certification: FDA

结构：内管为波纹状的PTFE软管，夹层为玻璃纤维布，外覆不锈钢丝编织
温度范围：-70℃至+260℃
应用场合：输送强腐蚀性化学品，热空气，热油，蒸汽等。不宜用在蒸汽冷水循环。
可根据客户要求，定制成黑色抗静电内管
具有柔韧性高、零摩擦、耐高压和耐温广的优势，可进行CIP和SIP清洗
符合FDA认证

编码	内径		外径	内管壁厚	弯曲半径	工作压力	爆破压力
编码	in.	mm	mm	mm	mm	bar	bar
TCGS010	3/8"	9.5	15.9	0.75	20	110	440
TCGS013	1/2"	12.7	18.9	0.75	30	100	400
TCGS016	5/8"	15.9	22.7	0.75	60	85	340
TCGS019	3/4"	19	26.2	0.90	60	80	320
TCGS025	1"	25.4	32.2	1.00	70	60	240
TCGS032	1-1/4"	32	42.9	1.00	95	45	180
TCGS038	1-1/2"	38	48.2	1.00	130	35	140
TCGS051	2"	50.8	61.7	1.10	170	25	100
