CJFLEX 网纹硅胶管 PF

品牌：CJFLEX
口径范围：4.8-32mm
温度范围：-60°C 到+200°C
应用范围：食品、饮料、饮用水、化妆品、医药、制药、中间体、半成品、原料药等高洁净行业
认证标准：FDA, USP,BFR, USDA, ISO 10993


电子邮箱	QQ在线	打印此页	收藏此页

Description/产品详情

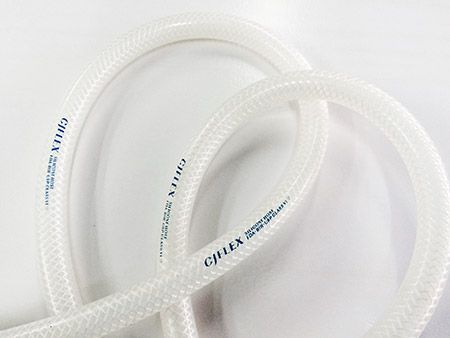

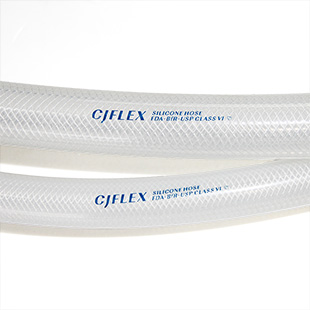

CJFLEX 铂金硫化网纹硅胶管

TYPE PF

Construction: Type PF is manufactured from High purity platinum cured Silicone with polyester fiber reinforcement.
Temp. Range: -60°C and 200°C.
Colour: Translucent (Coloured covers available)

Applications: For transporting liquids at low pressure where a closed bending radius is not required. It is not recommended for vacuum. Suitable for CIP and SIP cleaning.

Note: If it is required to use high-temperature steam above 121 ℃ for a long time, it can be customized.

Certification: FDA, USP, BFR, USDA, ISO 10993
Length: Standard maximum length is 50 meters, for a longer length, please contact us.

** PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

应用：食品、饮料、饮用水、化妆品、医药、制药、中间体、半成品、原料药等高洁净行业
结构：铂金硫化硅胶管，内置网状聚酯纤维增强
温度范围：-60oC至200oC
颜色：标准为半透明，可定制其他颜色

应用场合：低压下输送液体，可进行CIP及SIP清洗，不建议用于真空环境

注：如长期用于121℃以上的高温蒸汽输送，请明确告知，单独定制。

符合认证：FDA, USP, BFR, USDA, ISO 10993
长度：标准最长长度为50米，如需更长长度，请来电咨询。

网纹硅胶管

编码	内径		外径	弯曲半径	工作压力	爆破压力
编码	in.	mm	mm	mm	bar	bar
PF005	3/16"	4.8	10	25	12	45
PF006	1/4"	6.4	12.6	40	11.5	35
PF008	5/16"	7.9	15	45	10	30
PF010	3/8"	9.5	16.5	60	9	27
PF013	1/2"	12.7	20.3	70	8.5	25.5
PF016	5/8"	15.9	24	85	7	21
PF019	3/4"	19	28	95	6.4	19
PF022	7/8"	22	31.5	110	5.5	17
PF025	1"	25.4	35.2	135	5	15
PF032	1-1/4"	32	40.8	160	2.5	7.5
