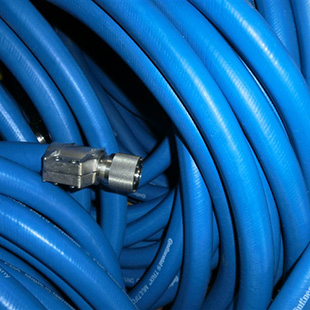

NBR食品级热水清洗软管 CFHC
Application:
This is the universal hose for the food
industry. It can be used in dairy, cheese production, margarine production,
large-scale catering establishments, fish processing industry as well as in
breweries, slaughter-houses, oil mills, skinning industry, large-scale
butcher's shops and jam production. It can also be used for the equipment of
dairy machines.
Construction:
Tube: White NBR, homogeneous, smooth
Reinforcements: Synthetic fiber
Cover: Blue NBR, resistant to abrasion,
UV, fats and oils
Temperature range: –20°C~+90°C
Can be steamed up to 6 bar (164°C) –
open system only
Standard/Approval:Meets FDA
使用范围:
这是一款食品行业通用软管,可用于奶制品,奶酪,黄油生产,鱼类加工以及酿酒,屠宰场,食用油,果酱生产等行业。
软管结构:
内管:白色NBR,均匀,光滑
增强层:合成纤维
外管:蓝色NBR,耐油脂,臭氧,环境,UV及耐磨
温度范围:-20°C~+90°C
可以用6bar(164°C)蒸汽清洗-仅限于开式系统。
适用标准及认证:符合FDA认证
编码 |
内径 |
外径 |
弯曲半径 |
工作压力 |
爆破压力 |
重量 |
|
inch |
mm |
mm |
mm |
bar |
bar |
kg/m |
|
CFHC013 |
1/2" |
13 |
23 |
95 |
10 |
60 |
0.43 |
CFHC016 |
5/8" |
16 |
26 |
115 |
10 |
60 |
0.50 |
CFHC019 |
3/4" |
19 |
31 |
150 |
10 |
60 |
0.70 |
CFHC025 |
1" |
25 |
39 |
200 |
10 |
60 |
1.05 |
