食品级PU钢丝加网纹软管 FUPSD-塑料软管

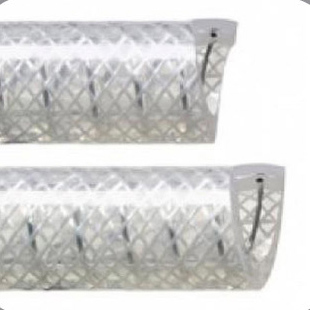

食品级PU钢丝加网纹软管 FUPSD

使用范围：可广泛应用于多种领域,如传输:食品、化妆品、保健品,药品
特性：聚醚型聚氨酯材质,特别柔韧,不锈钢钢筋螺旋(AISI 302) 及高强度聚酯纤维网加强。
颜色：透明
温度：-30°C + 90°C (短时间可耐 + 125°C)


电子邮箱	QQ在线	打印此页	收藏此页

Description/产品详情

食品级PU钢丝加网纹软管 FUPSD

APPLICATIONS: Versatile suction and delivery hose for food, cosmetic, health and body care, pharmaceutical substances: spirits with alcoholic content up to 15%, beverages, fruit juices, powders, granules, dry food, pills, tablets, pigments, creams, soaps, aromas & essences. Also suitable for oil and fatty foods. NO suitable for milk and dairy products.
Features: Highly flexible and clear Ether-based Polyurethane reinforced with stainless steel spiral (AISI 302) and high tenacity polyester yarn.
Completely smooth inside and outside to enhance the flow and detect possible blockages.
The low porosity reduces permeation problems and allows easy cleaning process.
Highly neutral in taste and odor, it preserves the organoleptic properties of the media.
Excellent mechanical properties: highly flexible and low weigh, resistant to most chemicals, acids and alkaline solutions, ageing, hydrolysis, UV Rays, bacteria and microbes proliferation.
Phthalates free. Halogens free.
The hose becomes antistatic by grounding the spiral (both ends).
Colour: Transparent
Temperature range: 30°C + 90°C (intermittent to +125°C)
Standards:
Food grade according to the EU Regulation n° 10/2011, FDA regulations (Title 21 CFR 177.2600, aqueous foods), USP CLASS VI, TRB S 2153, RoHS 2011/65/EU Directive, REACH Regulation (1907/2006).
使用范围：可广泛应用于多种领域,如传输:食品、化妆品、保健品,药品,酒精浓度高达15%的酒类,饮料、果汁; 粉末、颗粒、干性食物,药丸、药片,颜料,面霜,香皂,香料等, 也适用于含油和高脂肪的食物,但不适用于牛奶或奶制品。
特性：聚醚型聚氨酯材质,特别柔韧,不锈钢钢筋螺旋(AISI 302) 及高强度聚酯纤维网加强。
内、外壁完全光滑,提高流量,降低阻塞的可能性。
低孔隙度,减少渗透问题,也便于清洁。
最大程度的保留了物料的原汁原味及原有属性。
机械性能卓越,极为柔韧而且质轻、耐多数化学品,是传输酸性和碱性溶液的理想解决方案。耐老化、抗水解、抗紫外线、抗菌。
不含邻苯二甲酸盐，不含卤素。软管两端钢丝接地可排静电。
颜色：透明
温度：-30°C + 90°C (短时间可耐 + 125°C)

认证：符合EU Regulation n° 10/2011食品级标准，符合 FDA (Title 21 CFR 177.2600，含水食物)标准，符合USP VI药品级规定，符合 TRB S 2153规定，符合RoHS 2011/65/EU 指令， REACH Regulation (1907/2006)标准。

编码	内径		外径	弯曲半径	工作压力	爆破压力	真空度	重量	每卷长度
编码	inch	mm	mm	mm	bar	bar	bar	kg/m	m
FUPSD013	1/2"	13	23.5	65	19	57	0.97	0.37	60
FUPSD020	3/4"	20	32	100	17	51	0.97	0.59	60
FUPSD025	1"	25	37.5	125	12	36	0.97	0.75	60
FUPSD032	1-1/4"	32	44	160	11	33	0.87	0.89	60
FUPSD038	1-1/2"	38	51	190	10	30	0.87	1.11	30
FUPSD051	2"	50.5	65	252	8	24	0.77	1.70	30
